CILIA Light

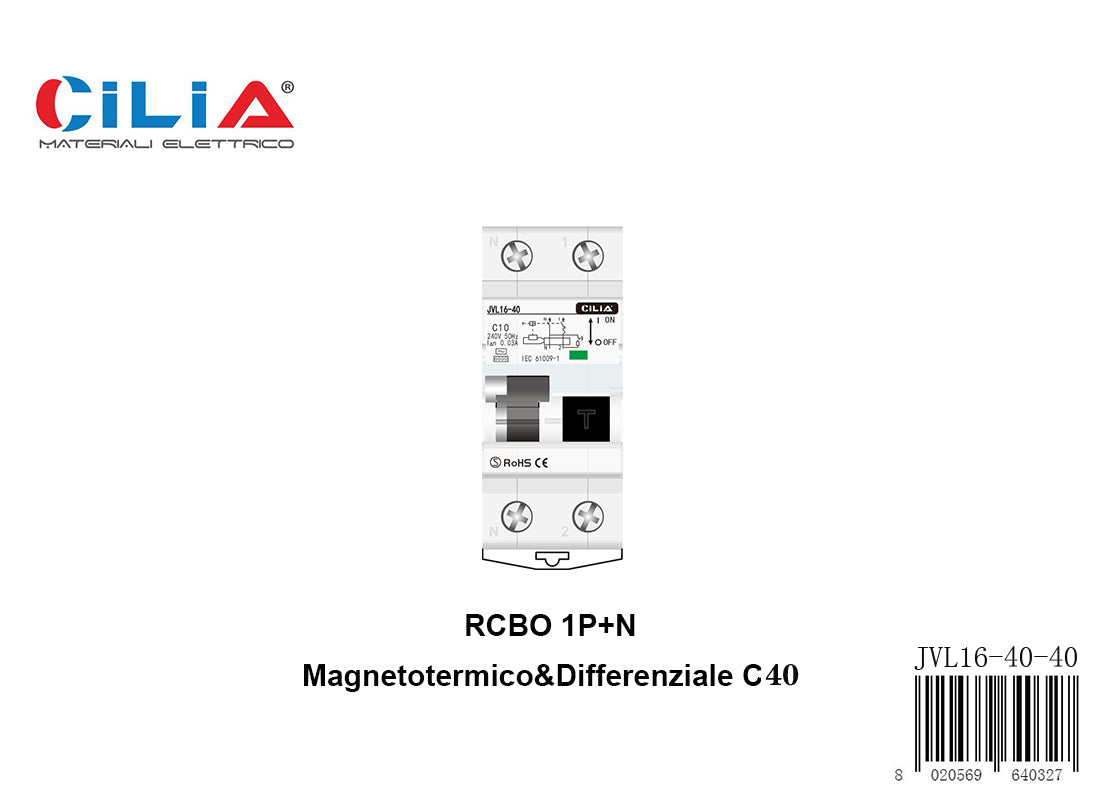

CILIA Residual current circuit breaker with overcurrent protection, RCBO 2 modules, DIN connection (universal for any switchboard on the market), 1P+N,40 Amps 6.0kA, 30 mA, 230 Vac, type AC, curve C

CILIA Residual current circuit breaker with overcurrent protection, RCBO 2 modules, DIN connection (universal for any switchboard on the market), 1P+N,40 Amps 6.0kA, 30 mA, 230 Vac, type AC, curve C

常规价格 $230.00
常规价格 促销价 $230.00
促销 售罄

Description

The circuit breaker is located next to the safety switch and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.



The magnetothermal differential is, therefore, a system that combines the functions of the life saver with the magnetic and thermal characteristics.

The differential circuit breaker present in the electrical system integrates three different protections:

· the  magnetic one  for short circuits that can put an entire building at risk with the risk of fires;

· the  thermal one  for overloads in the supply of electrical energy (for example more than one appliance in operation);

· the  differential one  specific to the life saver which protects the subject from a current leakage.

The AC type differential switch ensures intervention for sinusoidal differential alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).


Characteristics:

· CILIA Series

· Voltage  230/240  Vac

· Current In 16A

· Breaking capacity Icn 4.5kA

· Intervention curve C

· Differential current Idn 30mA

· AC Differential Type

· Operating frequency 50 Hz

· 2 modules

· 1P+N poles

· Height 86 mm

· Width 36 mm

· Depth 78 mm

· Recess depth 70 mm

· Any mounting position

· Net weight 271 g

· tightening torque / with screw terminals min 2.5 Nm, max 3 Nm

· Degree of protection IP20, for installation in a distribution board, with connected conductors

Technical data sheet

Modules:

2

Poly:

1P+N

Curve:

C

Candies:

6,0KA

Differential type:

A.C

Differential current:

0.03A

Ampere:

10A 16A 20A 25A 32A

Circuit Protections:

Differential Magnetothermics
