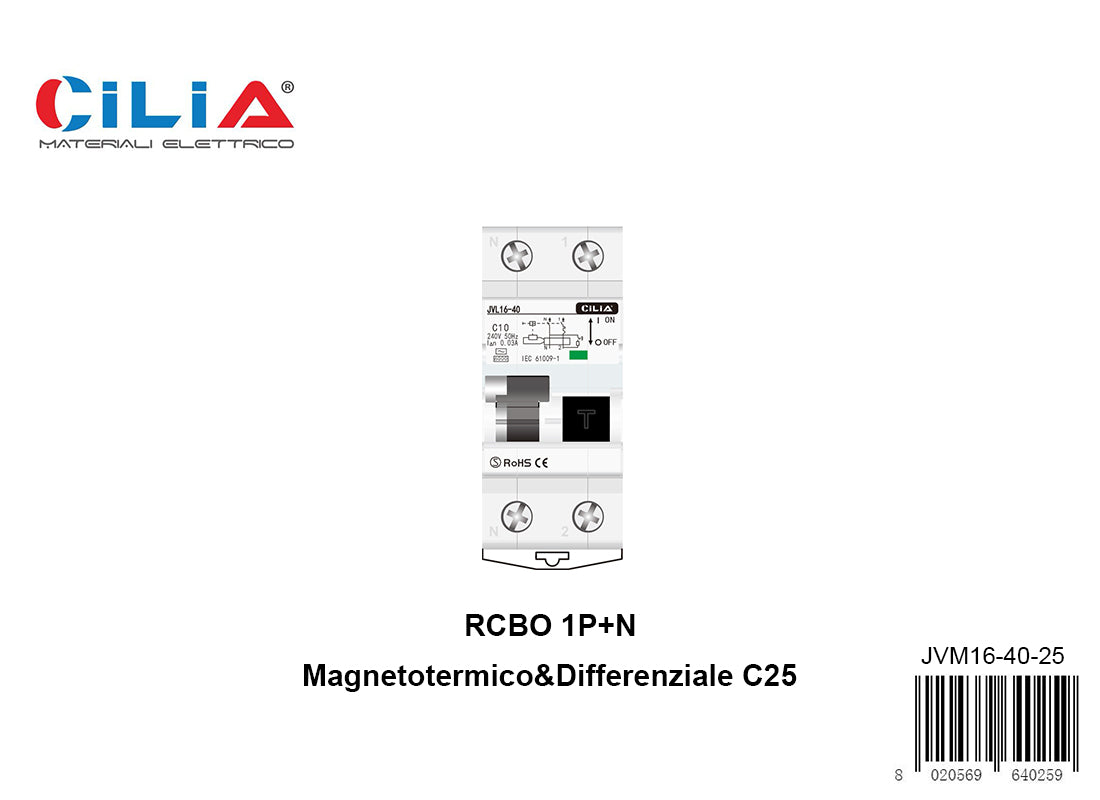

CILIA Residual current circuit breaker with overcurrent protection, RCBO 2 modules, DIN connection (universal for any switchboard on the market), 1P+N,25 Amps 6.0kA, 30 mA, 230 Vac, type AC, curve C
CILIA Residual current circuit breaker with overcurrent protection, RCBO 2 modules, DIN connection (universal for any switchboard on the market), 1P+N,25 Amps 6.0kA, 30 mA, 230 Vac, type AC, curve C
The circuit breaker is located next to the safety switch and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.
The magnetothermal differential is, therefore, a system that combines the functions of the life saver with the magnetic and thermal characteristics.
The differential circuit breaker present in the electrical system integrates three different protections:
· the magnetic one for short circuits that can put an entire building at risk with the risk of fires;
· the thermal one for overloads in the supply of electrical energy (for example more than one appliance in operation);
· the differential one specific to the life saver which protects the subject from a current leakage.
The AC type differential switch ensures intervention for sinusoidal differential alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Characteristics:
· CILIA Series
· Voltage 230/240 Vac
· Current In 16A
· Breaking capacity Icn 4.5kA
· Intervention curve C
· Differential current Idn 30mA
· AC Differential Type
· Operating frequency 50 Hz
· 2 modules
· 1P+N poles
· Height 86 mm
· Width 36 mm
· Depth 78 mm
· Recess depth 70 mm
· Any mounting position
· Net weight 271 g
· tightening torque / with screw terminals min 2.5 Nm, max 3 Nm
· Degree of protection IP20, for installation in a distribution board, with connected conductors
Technical data sheet
Modules:
2
Poly:
1P+N
Curve:
C
Candies:
6,0KA
Differential type:
A.C
Differential current:
0.03A
Ampere:
10A 16A 20A 25A 32A
Circuit Protections:
Differential Magnetothermics
