CILIA EVO Relay/Switch with pulses (step-by-step) 4 Sequences 2 NO, AC, 50/60Hz ,230V Built-in capacitor

Description

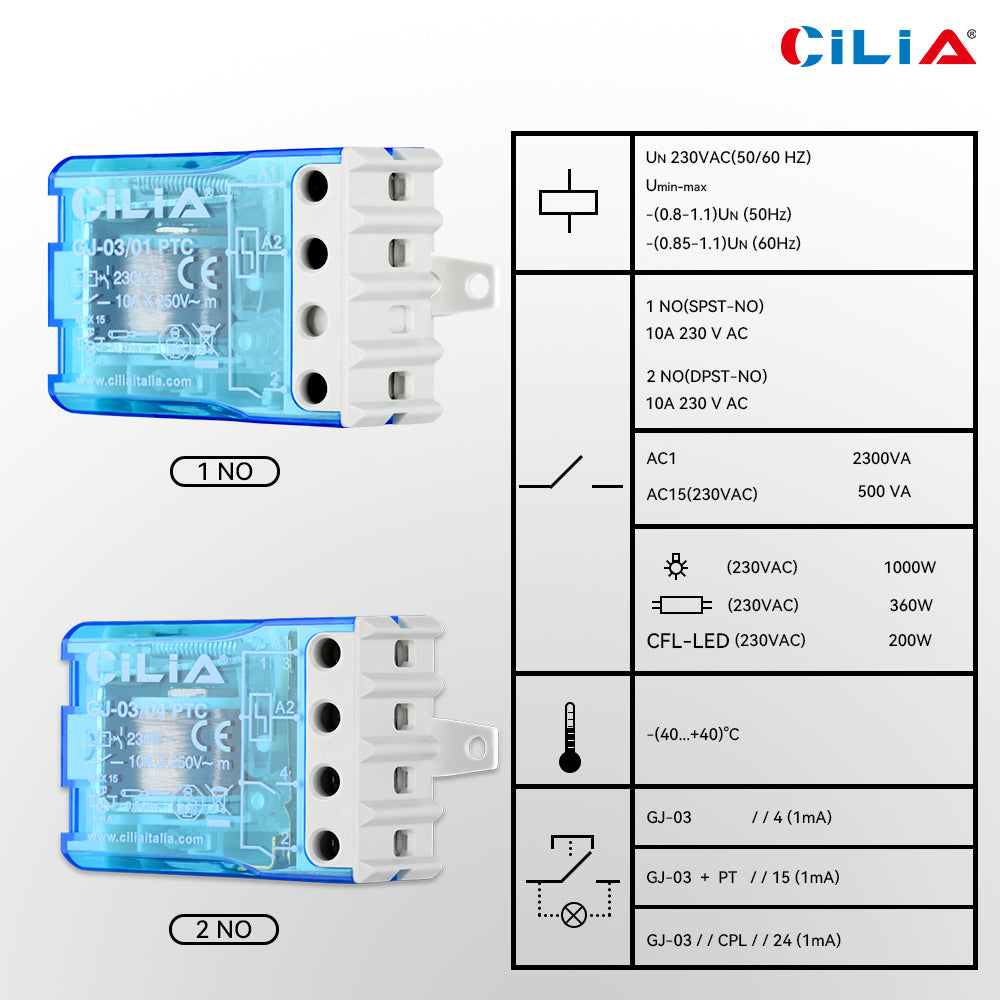

Characteristics:

· CILIA Series

· Operating range AC 50Hz/AC 60Hz - (0.8 ... 1.1)UN/(0.85 ... 1.1)UN

· Electrical life AC/DC 300 103

· Electrical life at nominal load in AC1 cycles 100 10

· Number of connectable illuminated buttons (≤1mA) 15

· Min/Max command pulse duration 0.1s/continuous

· Ambient temperature: –40…+40°C

· Degree of protection IP20

· Connection with 15 illuminated buttons without capacitor

· Coil power limiter

· Socket clamps

· Cadmium-free contacts

· EUROPE Patent

· Standard contact material AgNi

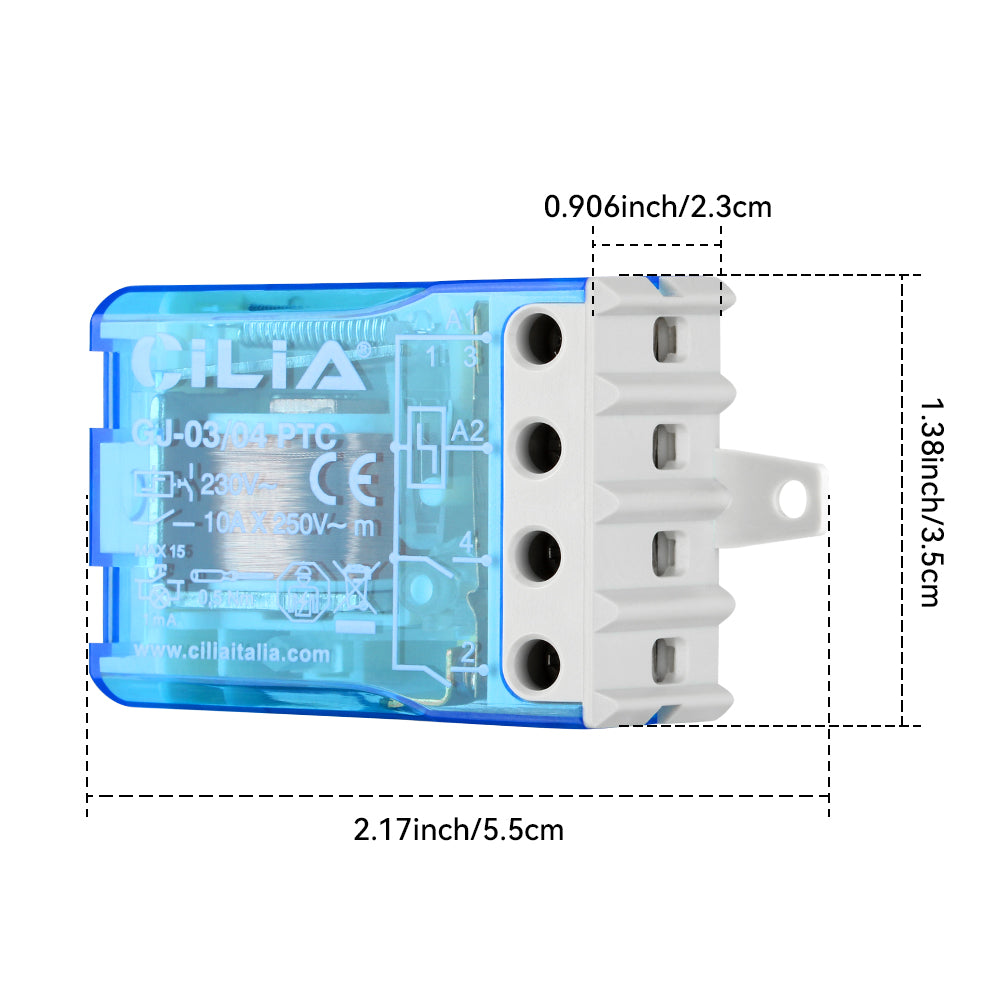

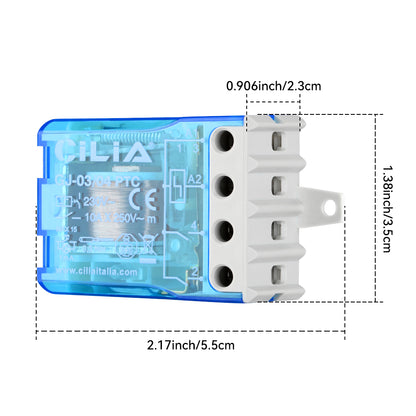

· Dimensions: 47x27x12

Lamp capacity:

· 1000W Incandescent

· 360W phase-corrected fluorescence

· 500W unphased fluorescence

· 800W halogen

Technical data sheet

Type:

Impulse relay
