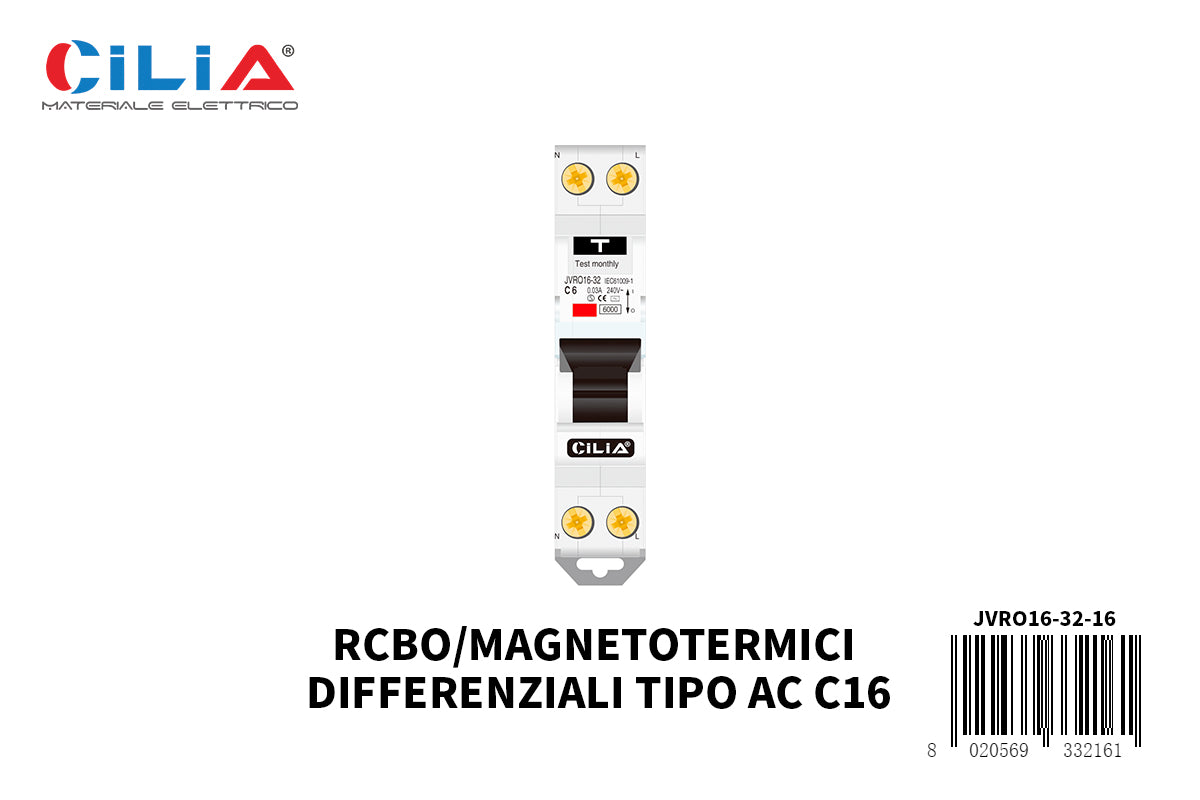

CILIA differential circuit breaker ,  1 module, DIN connection (universal for any commercial switchboard), 1P+N, 16Amps 6.0kA, 30 mA,  230 Vac, type AC, intervention curve C

Description

The circuit breaker is located next to the safety switch and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.

The magnetothermal differential is, therefore, a system that combines the functions of the life saver with the magnetic and thermal characteristics.

The differential circuit breaker present in the electrical system integrates three different protections:

· the  magnetic one  for short circuits that can put an entire building at risk with the risk of fires;

· the  thermal one  for overloads in the supply of electrical energy (for example more than one appliance in operation);

· the  differential one  specific to the life saver which protects the subject from a current leakage.

Curve C, intervention threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems.

The AC type differential switch ensures intervention for sinusoidal differential alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).

Characteristics:

· CILIA Series

· Rated voltage 240 Vac

· Current In 16A

· Breaking capacity Icn 6.0kA

· Fault current for tripping / rated value 30 mA

· Intervention curve C

· 1 module

· 1P+N

· AC Differential Type

· Operating frequency 50 Hz

· Recess depth 69.5 mm

· Tightening torque / with screw terminals min 1.2 Nm - max 2 Nm

· Height 90 mm

· Width 18 mm

· Depth 77 mm

· Recess depth 70 mm

· Any mounting position

· Net weight 117 g

· Degree of protection IP20, for installation in a distribution board, with connected conductors

Technical data sheet

Modules:

1

Poly:

1P+N

Candies:

6.0 KA

Differential type:

AC

Differential current:

0.03A

Ampere:

10A 16A 20A 25A 32A

Circuit Protections:

Differential Magnetothermics
