CILIA Light

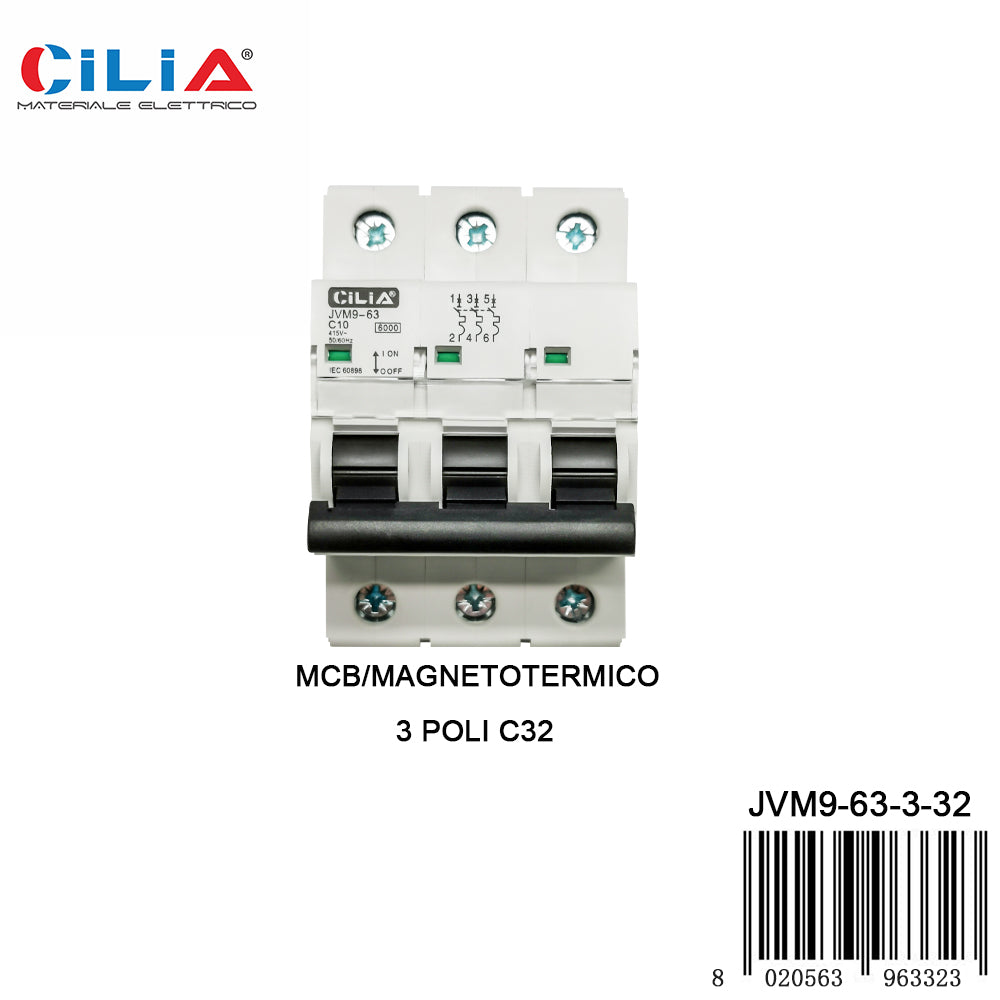

CILIA circuit breaker, 3 modules, DIN connection (universal for any switchboard on the market), 3P poles, 32 amps, breaking capacity 6kA, voltage 400 Vac, C curve

CILIA circuit breaker, 3 modules, DIN connection (universal for any switchboard on the market), 3P poles, 32 amps, breaking capacity 6kA, voltage 400 Vac, C curve

常规价格 $100.00
常规价格 促销价 $100.00
促销 售罄

.Description

The C curve can tolerate short-term overcurrents of up to five to ten times the nominal current and is widely used in domestic systems.

A circuit breaker is a safety device capable of automatically interrupting (i.e. without external intervention) the flow of electric current in an electrical circuit in the event of an overcurrent.

Characteristics:

· CILIA Series

· Voltage  400  Vac

· Current In 10-50A

· Breaking capacity Icn 6kA

· Intervention curve C

· 3 modules

· 3P Poles

· Degree of protection IP20

· Height  83 mm

· Width  53.4  mm

· Depth  76 mm

· Maximum cable section 25/35 mmq

Technical data sheet

Voltage:

400VAC

Modules:

3

Poly:

3P

Curve:

C

Candies:

6KA

Ampere:

10-50A

Circuit Protections:

Magnetothermics
