CILIA Light

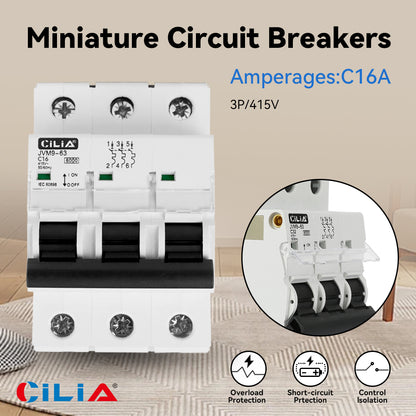

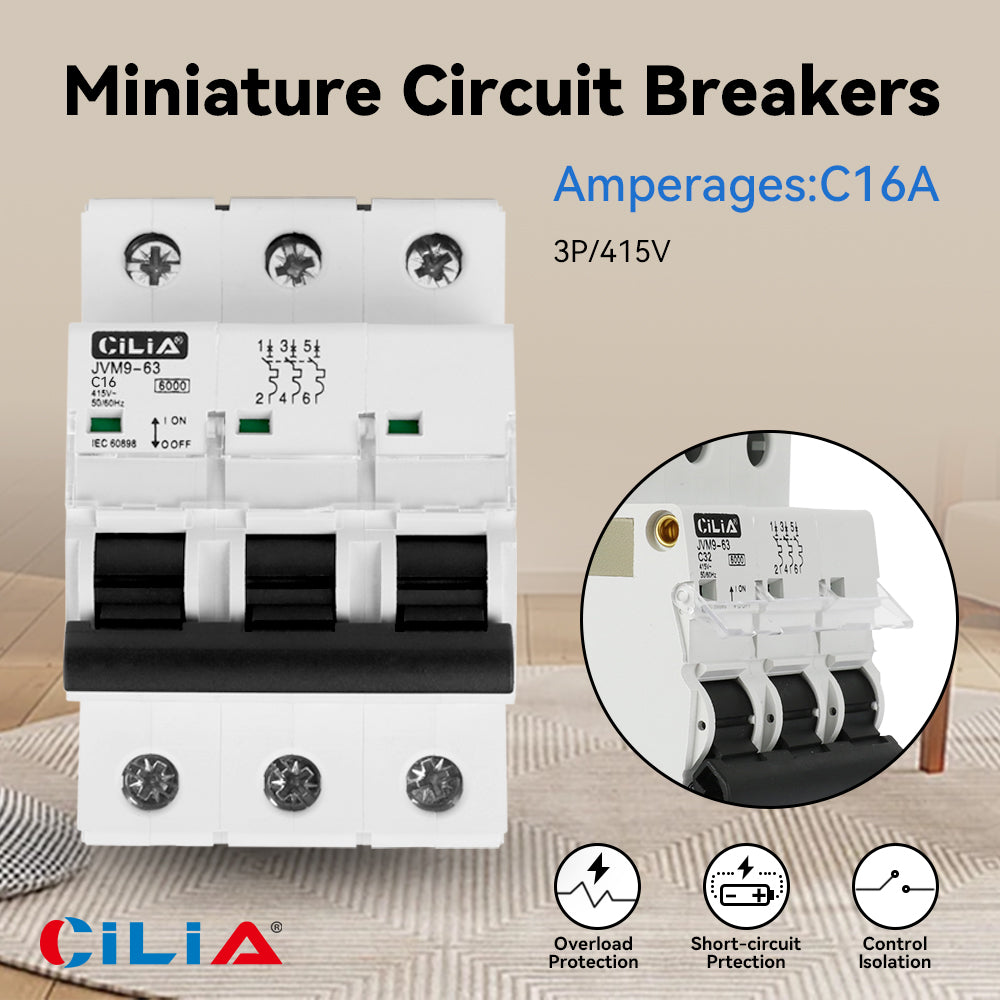

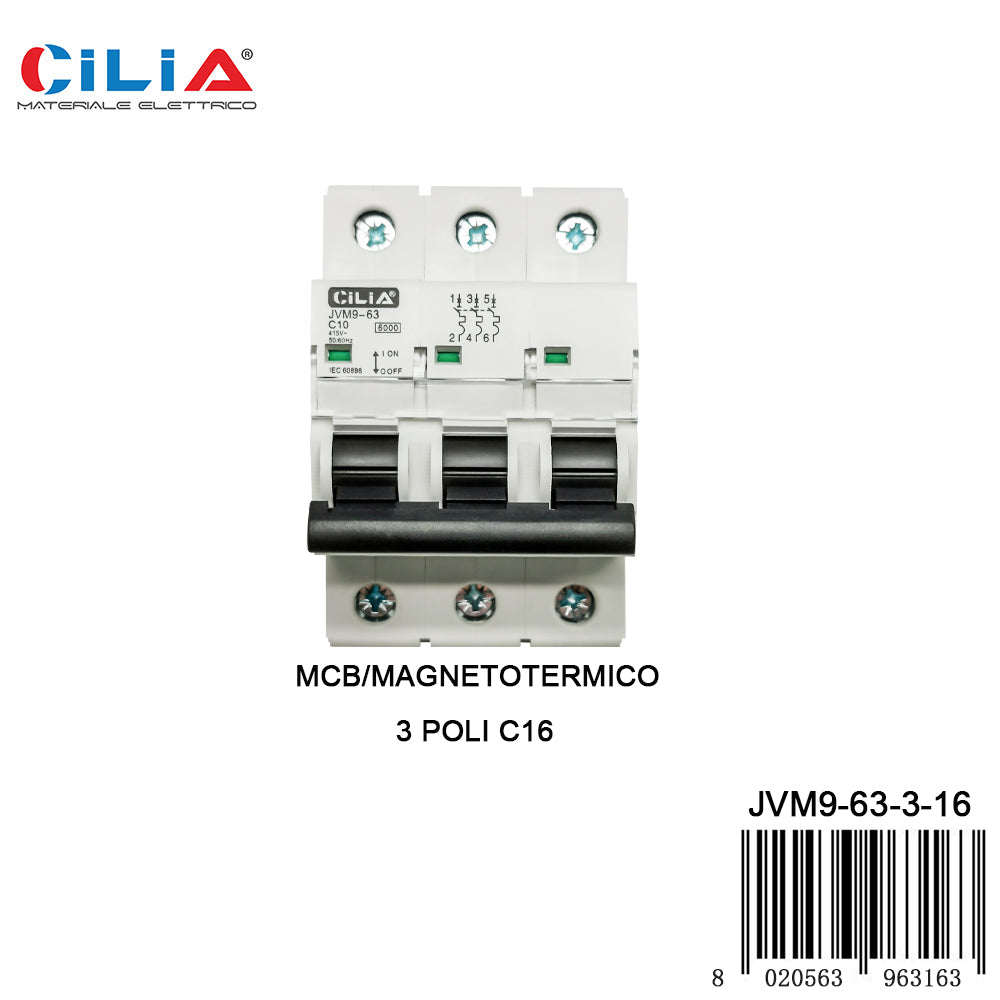

CILIA circuit breaker, 3 modules, DIN connection (universal for any switchboard on the market), 3P poles, 16 amps, breaking capacity 6kA, voltage 400 Vac, C curve
CILIA circuit breaker, 3 modules, DIN connection (universal for any switchboard on the market), 3P poles, 16 amps, breaking capacity 6kA, voltage 400 Vac, C curve
常规价格
$100.00
常规价格
促销价
$100.00
单价
/
单价
The C curve can tolerate short-term overcurrents of up to five to ten times the nominal current and is widely used in domestic systems.
A circuit breaker is a safety device capable of automatically interrupting (i.e. without external intervention) the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
· CILIA Series
· Voltage 400 Vac
· Current In 10-50A
· Breaking capacity Icn 6kA
· Intervention curve C
· 3 modules
· 3P Poles
· Degree of protection IP20
· Height 83 mm
· Width 53.4 mm
· Depth 76 mm
· Maximum cable section 25/35 mmq
Technical data sheet
Voltage:
400VAC
Modules:
3
Poly:
3P
Curve:
C
Candies:
6KA
Ampere:
10-50A
Circuit Protections:
Magnetothermics
