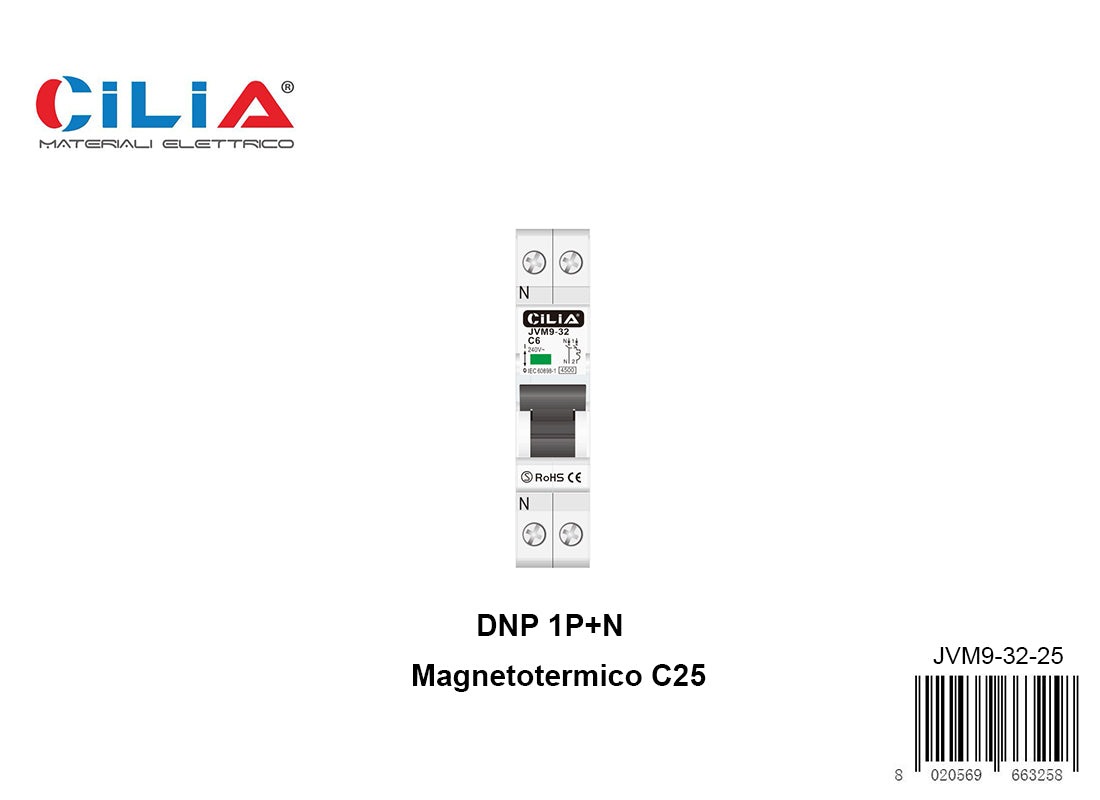

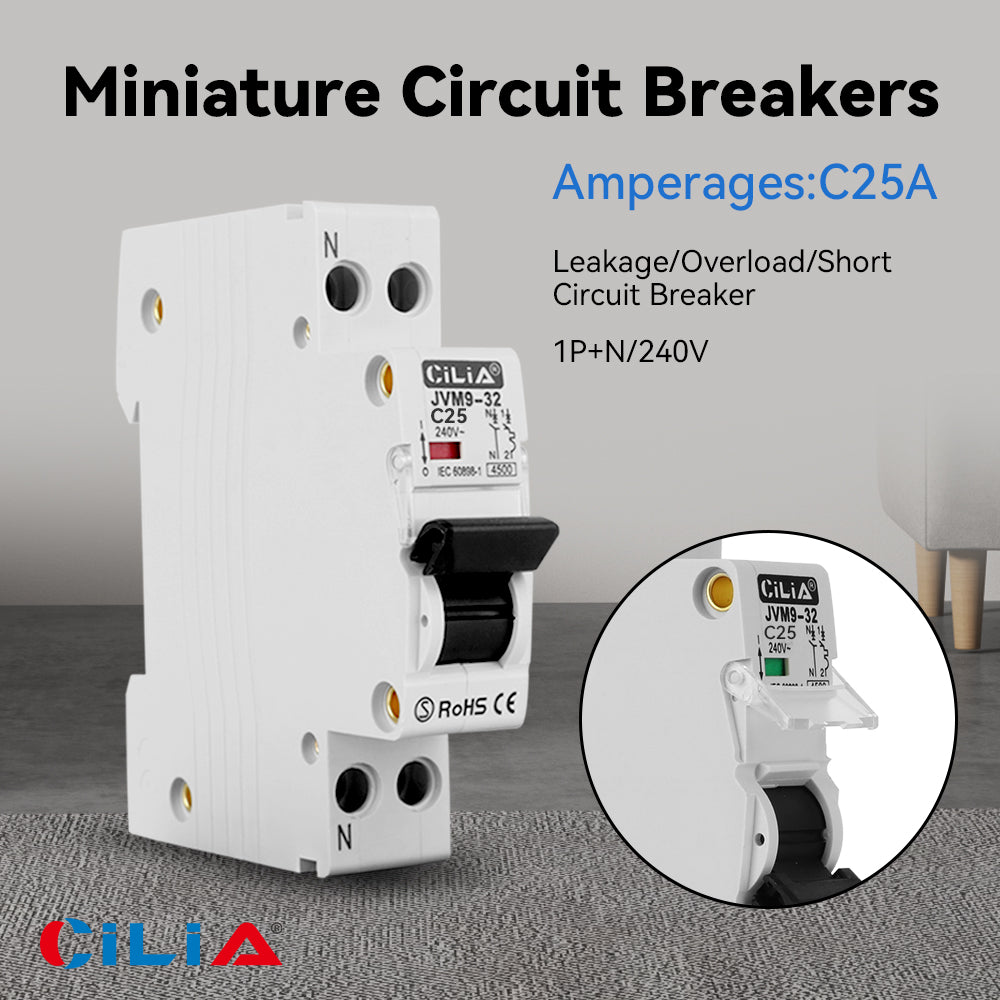

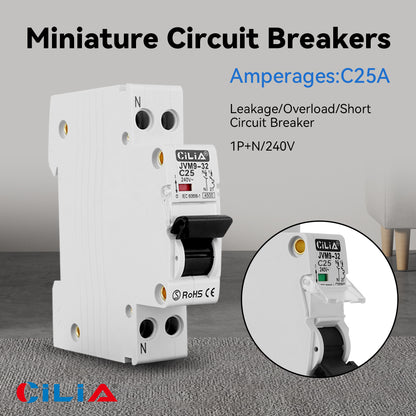

CILIA Interruttore Magnetotermico ,DPN 1P+N 220V Da 1 Modulo DIN, 4.5kA 30mA C25

Description (英语A+描述）

Curve C, intervention threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems.

A circuit breaker is a safety device capable of automatically interrupting (i.e. without external intervention) the flow of electric current in an electrical circuit in the event of an overcurrent.

Characteristics:

· CILIA Series

· Circuit breaker

· Rated voltage 230 Vac

· Current In 16A

· Breaking capacity Icn 4.5kA

· Intervention curve C

· 1 module

· 1P+N

· Height 86 mm

· Width 18 mm

· Depth 78.5 mm

· Recess depth 70 mm

· Net weight 210 g

· Tightening torque / with screw terminals 2.5 Nm, max. 3 Nm

· Degree of protection IP20, with connected conductors

Technical data sheet

Modules:

1

Poly:

1P+N

Curve:

C

Candies:

4.5KA

Ampere:

6A 10A 16A 20A 25A 32A

Circuit Protections:

Magnetothermics
